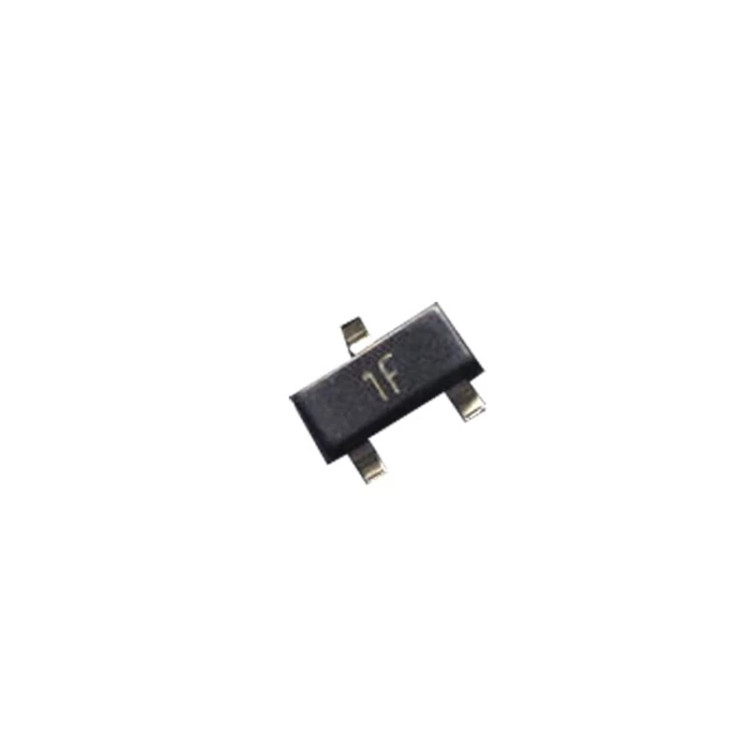

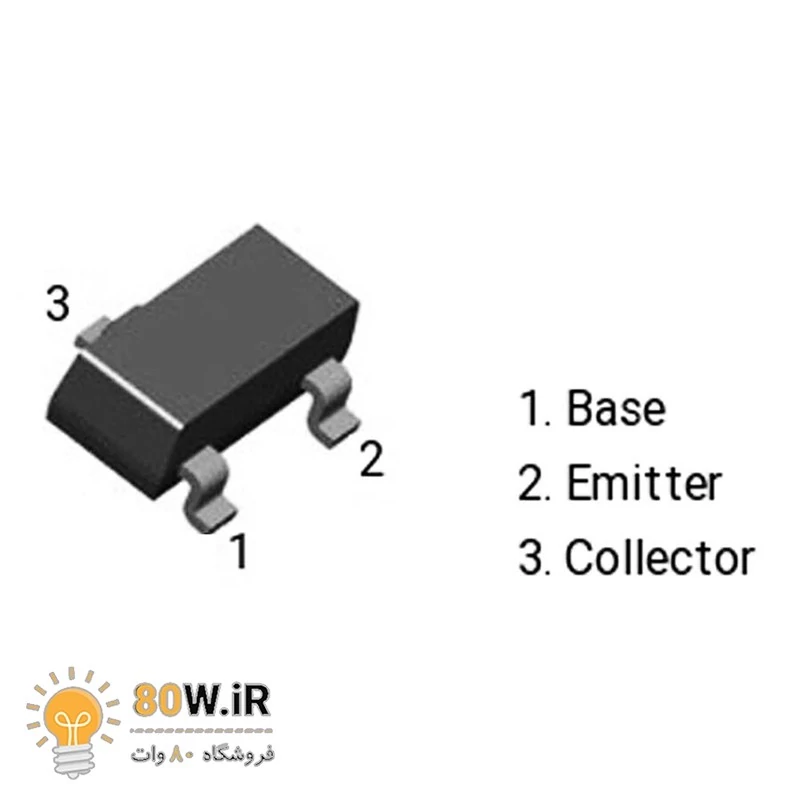

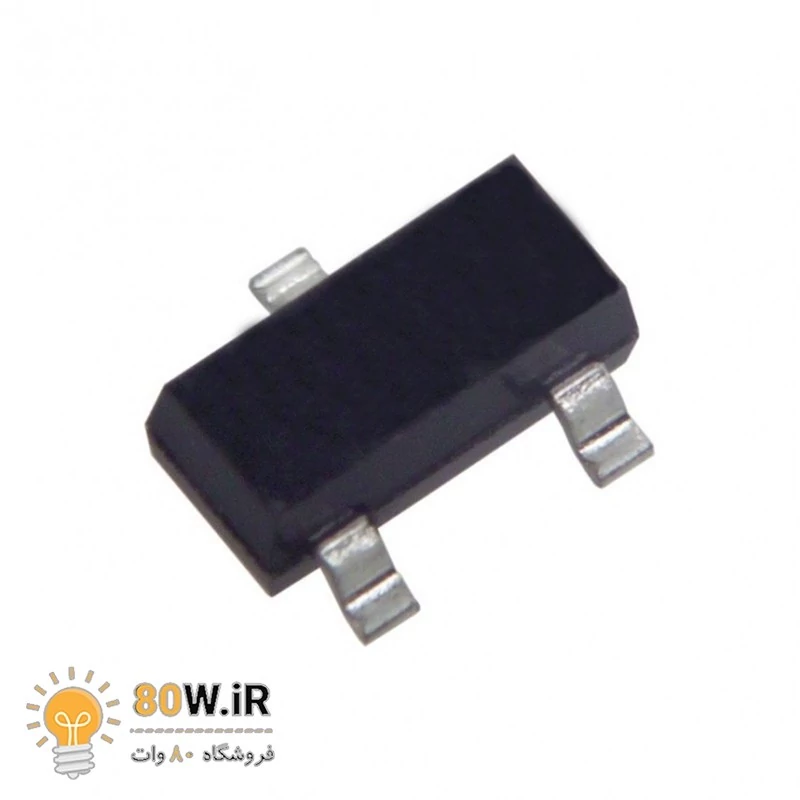

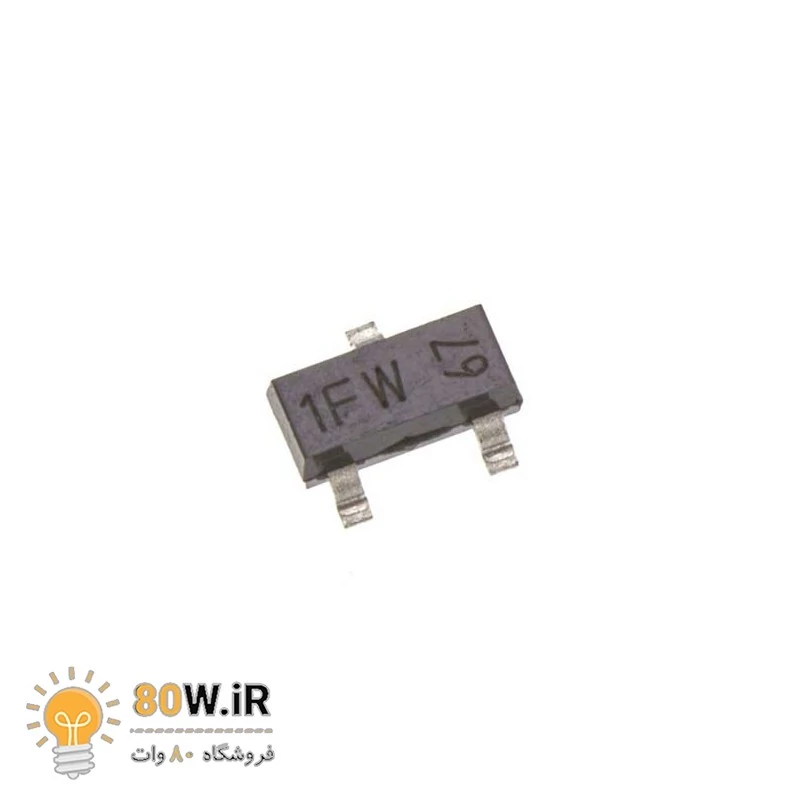

ترانزیستور BC847B smd پکیج SOT-23 (بسته 10 عددی)

ترانزیستور BJT نوع NPN مدل BC847B پکیج SOT-23 پکیج : SOT23 جریان کلکتور :  100 میلی آمپر ولتاژ کلکتور :  45 ولت Specification Product Category: Bipolar Transistors - BJT Mounting Style: SMD/SMT Package / Case: SOT-23-3 Transistor Polarity: NPN Collector- Emitter Voltage VCEO Max: 45 V Collector- Base Voltage VCBO: 50 V Emitter- Base Voltage VEBO: 6 V Maximum DC Collector Current: 100 mA Gain Bandwidth Product fT: 100 MHz Minimum Operating Temperature: - 65 C Maximum Operating Temperature: + 150 C DC Current Gain hFE Max: 200 at 2 mA at 5 V DC Collector/Base Gain hfe Min: 200 at 2 mA at 5 V Pd - Power Dissipation: 250 mW
